Armagh Robinson Library holds wonderful examples of types of paper marbling. This exhibition highlights these examples and explain the various techniques used.

PAPER MARBLING

Paper marbling is a method of decorating the surface of paper with a patterned design. The name is derived from the earliest patterns which resemble marble stone.

It is suggested that paper marbling originated in the Far East in the early 12thCentury and spread to Europe, where it became popular around the 1600s.

Initially, marbled papers protected the book block against wear and tear, and marbled book edges protected the block against forgery: the removal of pages would show in the pattern. Later, marbled paper would mostly be used decoratively.

A marbled paper is created by adding paints to a shallow tray filled with size, a thick, sticky liquid. The paints are then manipulated with combs, rakes or movement into the desired design. When the design is finished, a sheet of paper will gently be placed upon the size, to allow the paints to transfer. After the paper is lifted, it is dried.

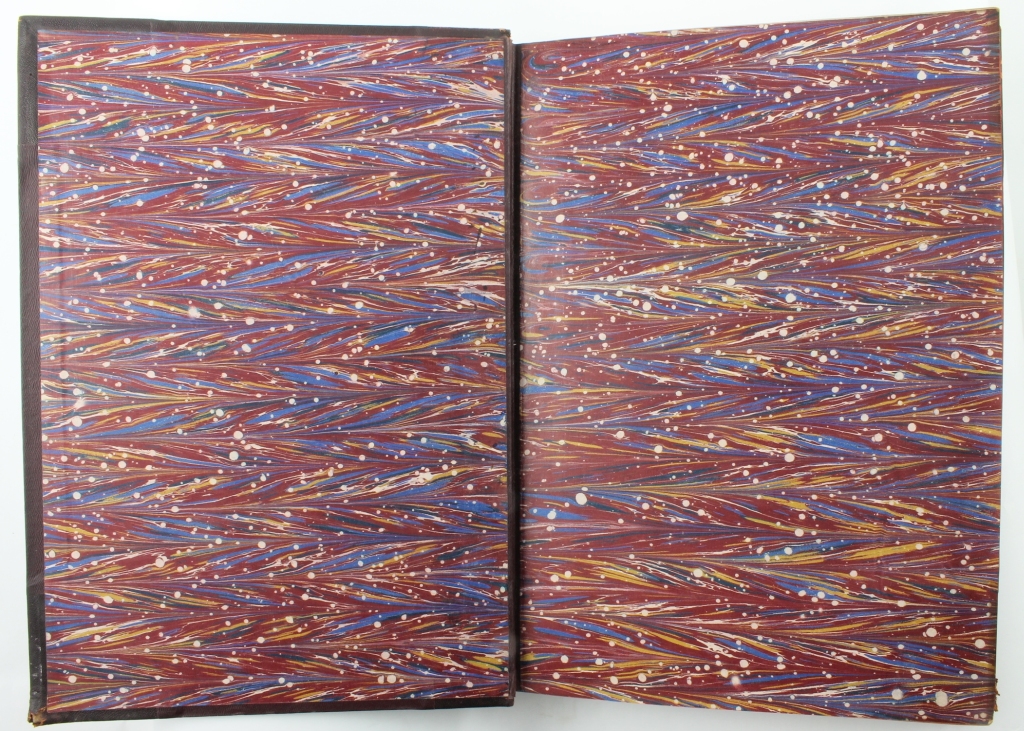

ANTIQUE STRAIGHT

It is suggested that the Antique straight pattern was made as early as the 17th century. This pattern is created by creating a feather pattern, which is then showered with fine (usually white) dots.

TITLE Inscriptiones Christianae urbis Romae septimo saeculo antiquiores EDITOR Giovanni Battista di Rossi PLACE Rome DATE 1857-1861 OBJECT ID P001203122

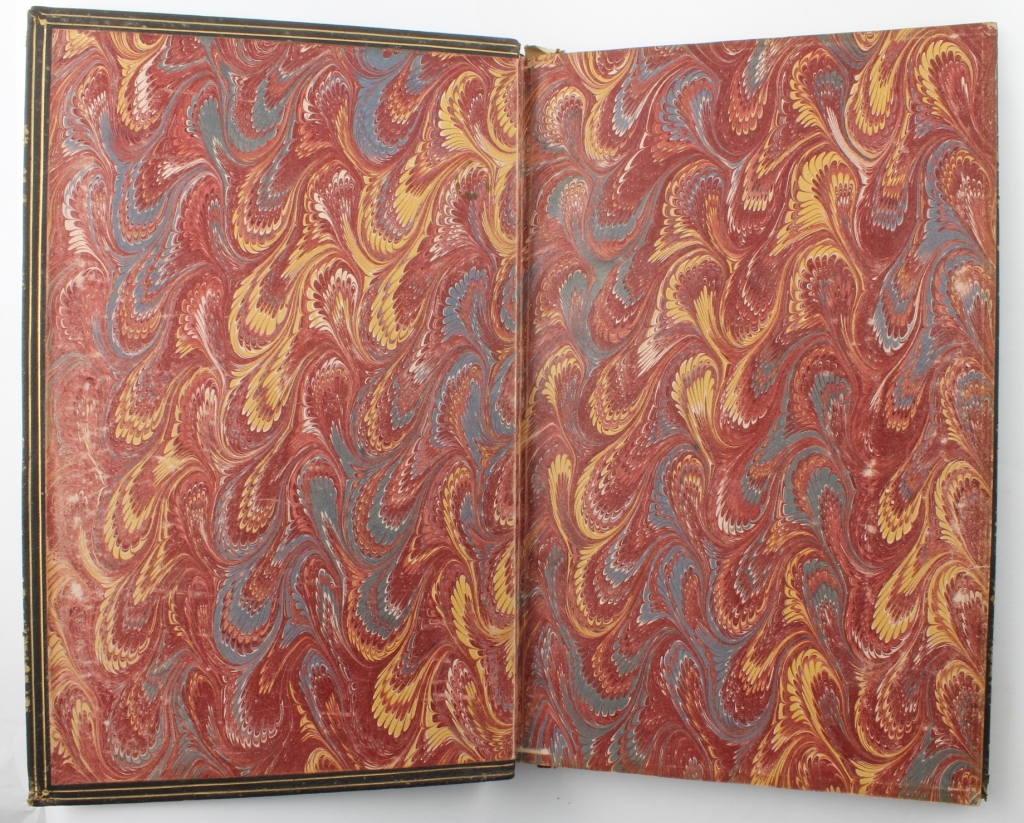

BOUQUET

The Bouquet pattern first appeared at the end of the 18th century. A Bouquet pattern begins with a Nonpareil base, after which a comb with two sets of teeth is drawn through the bath in loose, wavy lines which causes the Nonpareil lines to fan out.

Title Ancient and Modern Catalogues of the See Records of Armagh. To Which Is Prefixed a Report on their Present Condition. Armagh MDCCCLX [inserted: Addenda to Reeve's Catalogue of Mss in Primate Registry; Letter from James Leslie on addenda] Author Reeves, William, Author (1815 - 1892) Place Armagh (UK) Date 1860 OBJECT ID P001938572

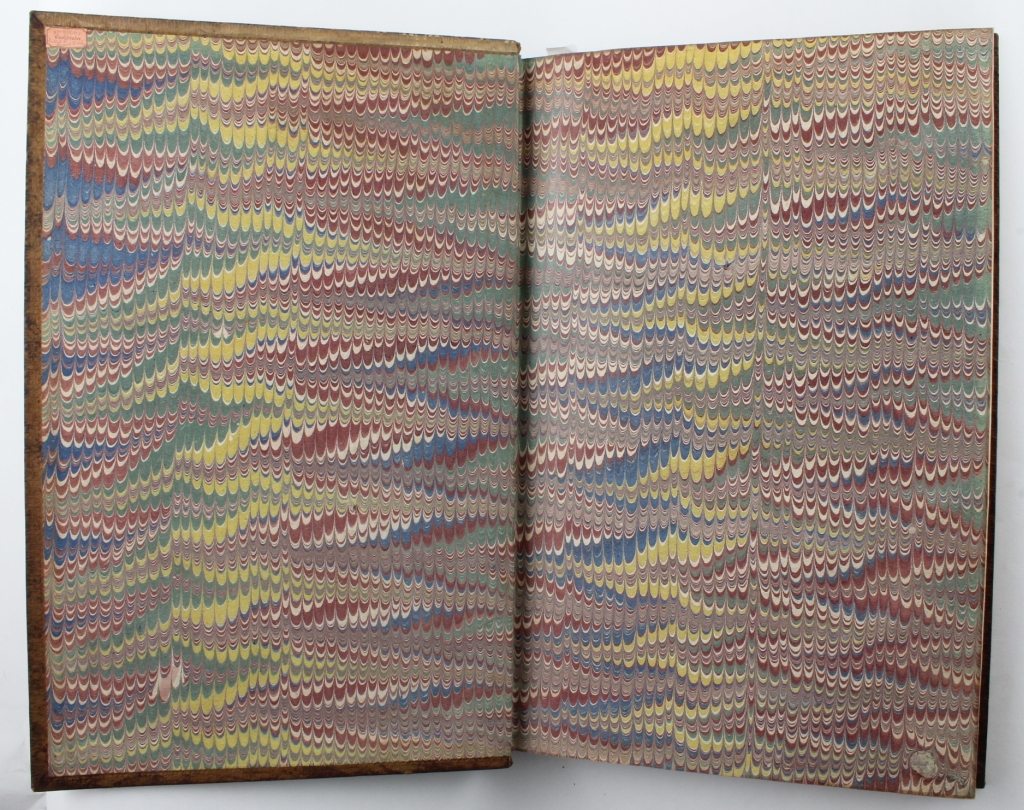

NONPAREIL

The Nonpareil pattern is one of the most basic of all marbled patterns. It is formed by dropping different paints onto the size. A comb is then pulled in through the paint horizontally twice, and then once vertically.

TITLE Tou en agiois patros ēmōn Athanasiou archiepiskopou Alexandreias ta euriskomena panta = Sancti patris nostri Athanasii archiepiscopi Alexandrini Opera omnia quae extant : vel quae ejus nomine circumferuntur : ad mss. codices Gallicanos, Vaticanos, &c. necnon ad commelinianas lectiones castigata, multis aucta : nova interpretatione, praefationibus, notis, variis lectionibus illustrata : nova sancti doctoris vita, onomastico, & copiosissimis indicibus locupletata : opera & studio monachorum ordinis S. Benedicti e congregatione Sancti Mauri : novissimis nunc curis emendatiora, & quarto valumine aucta. AUTHOR Athanasius, Saint Patriarch of Alexandria PLACE Padua DATE 1777

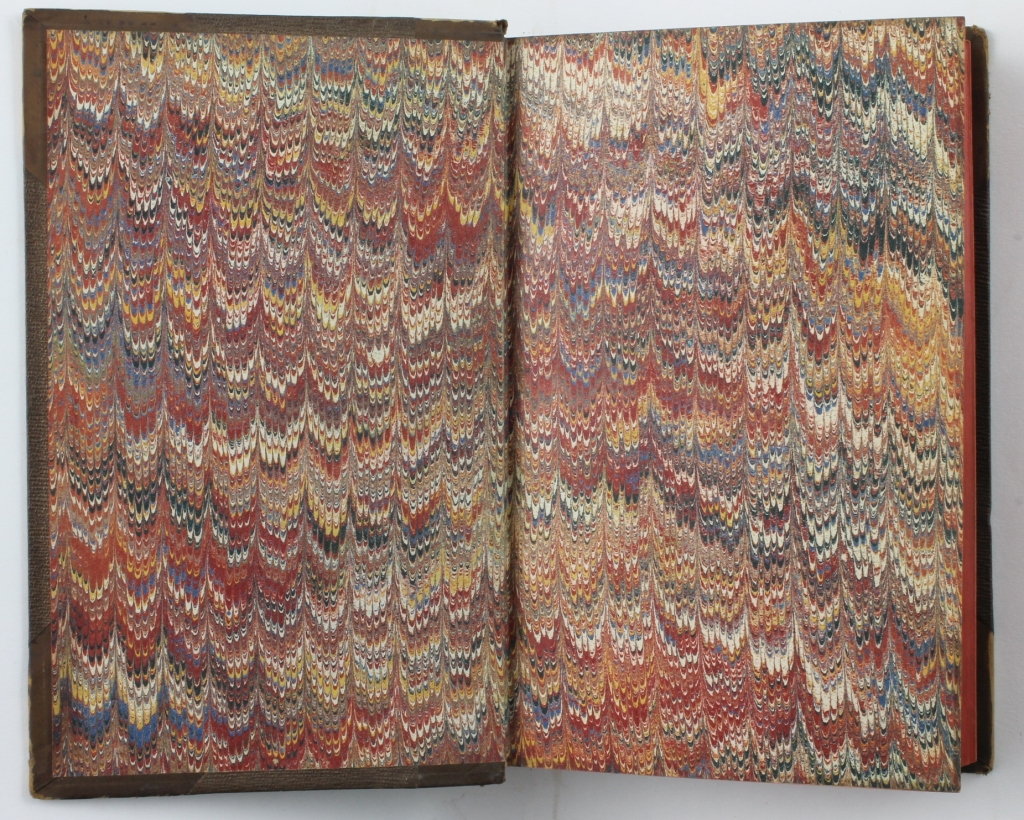

DOUBLE COMB

The Double comb pattern is based on the Nonpareil pattern.

A Nonpareil pattern is combed through once again vertically, this time with a wider toothed comb.

TITLE Theatre Complet de J.-B. Poquelin de Molière AUTHOR Jean-Baptiste Poquelin de Molière PLACE Paris DATE 1882

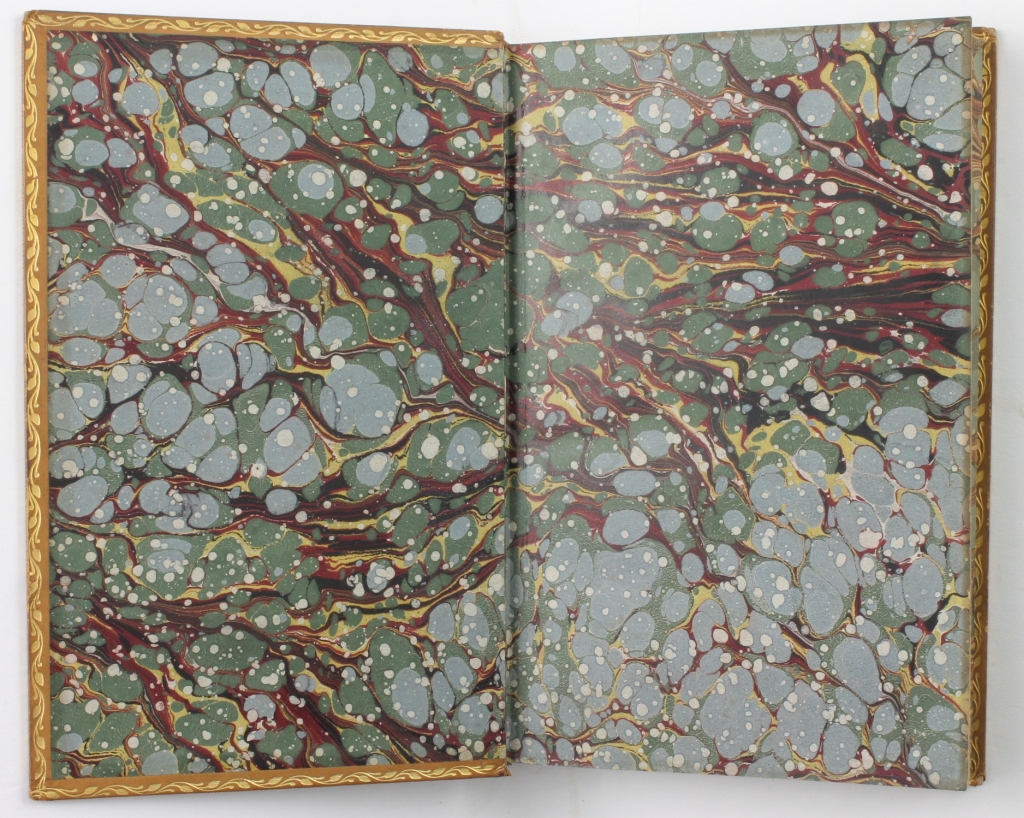

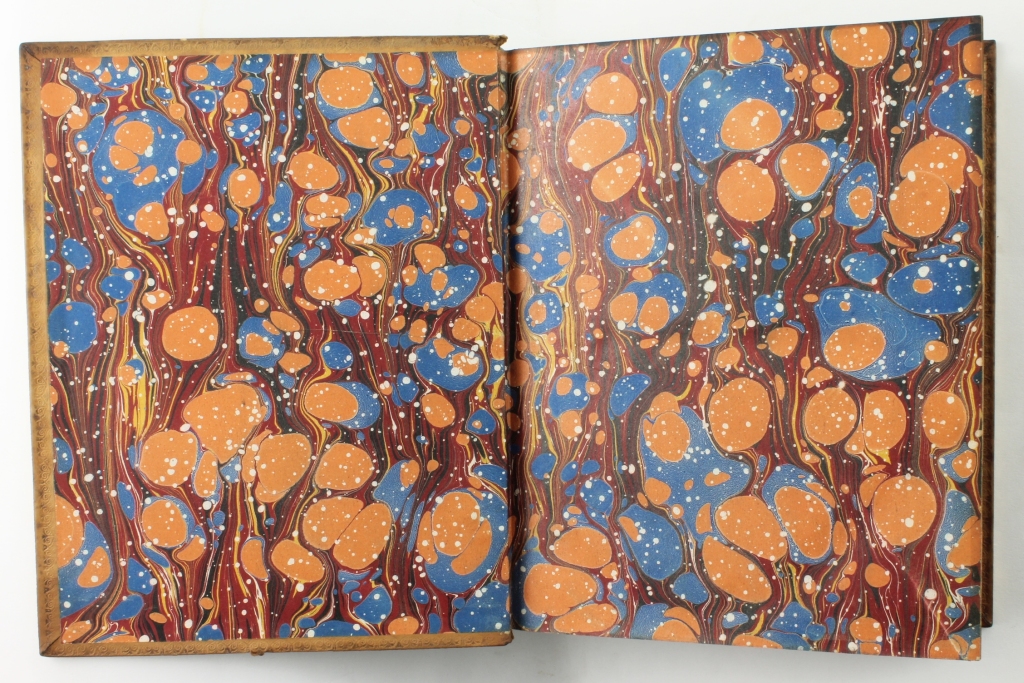

DAHLIA

The Dahlia pattern is created, firstly by making a Zebra pattern. Large drops of ink are dropped on the size. The drops are combed in a straight line twice. Large drops of ink are then splattered on. Secondly, for the Dahlia pattern, more colours are lightly splattered on top of the Zebra pattern.

TITLE Doctrina numorum veterum conscripta AUTHOR Joseph Eckhel PLACE Leipzig DATE 1826

TITLE The History of Rome AUTHOR B.G. Niebuhr PLACE London DATE 1855

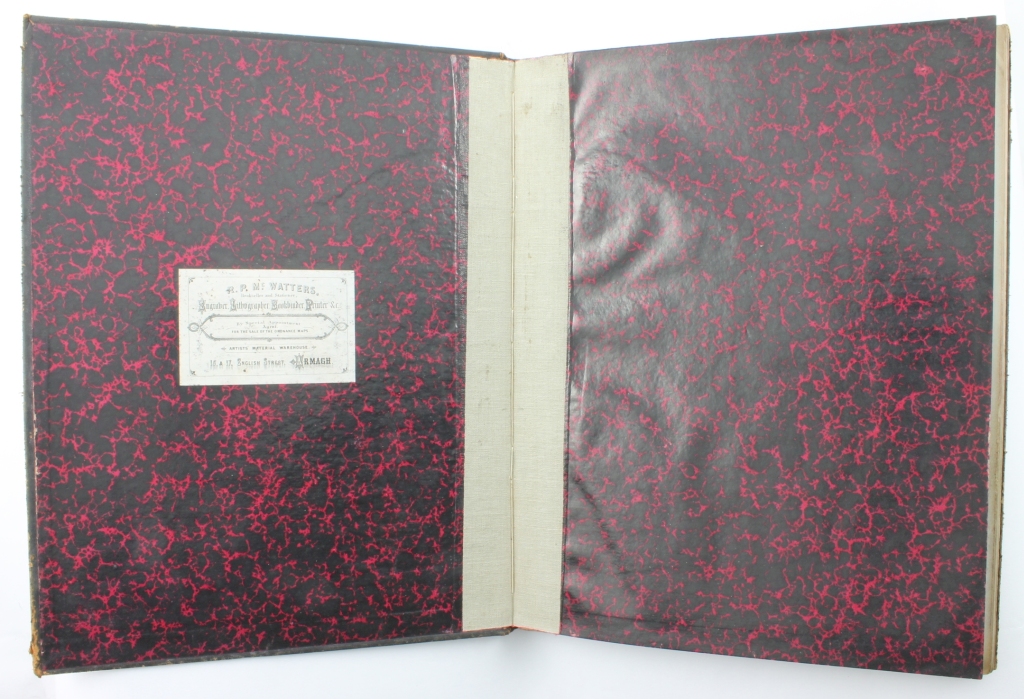

PAPIER COULÉ

Papier Coulé is created by covering a paper with a thin layer of colored paste. A second color of paste, diluted, would then be sprinkled on to the first colour. The paper would then be tilted, and the still wet paste colors would run to form the pattern.

TITLE Account of Books Borrowed from the Public Library in Armagh CREATOR Armagh Robinson Library DATE 1796-1802

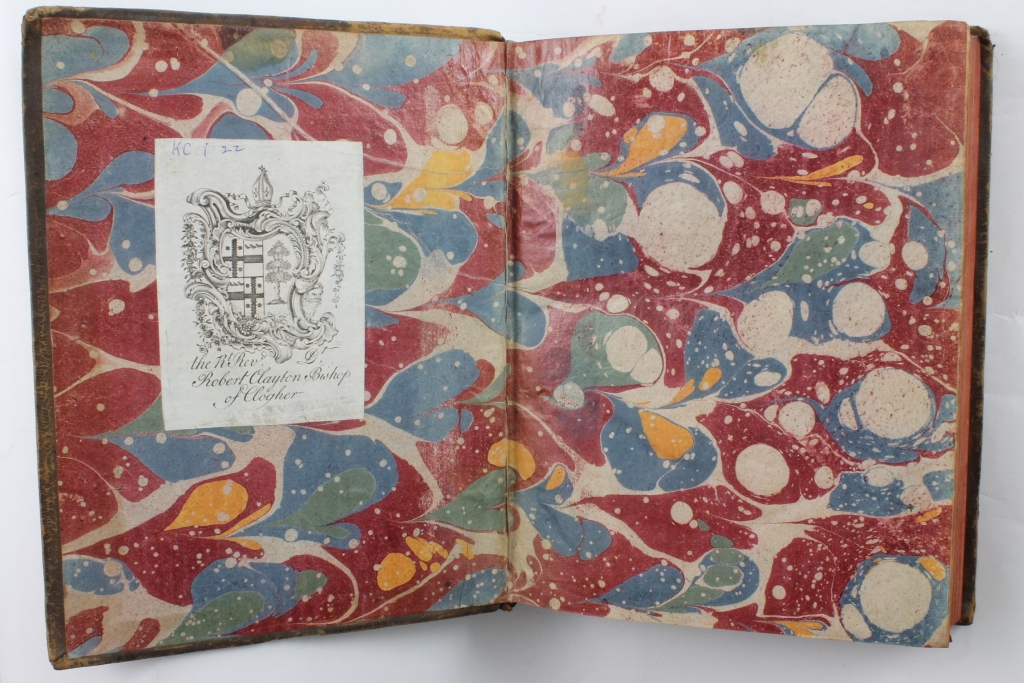

PLACARD

The Placard pattern might be one of the first marbled patterns created and was used for book decoration in France between 1680 and 1740. The pattern appears to be a combination of elements which later formed the basis of other patterns.

TITLE Commentaire Litteral Sur Tous Les Livres de L'Ancien et du Nouveau Testament : Ezechiel, et Daniel AUTHOR Augustin Calmet PLACE Paris DATE 1716

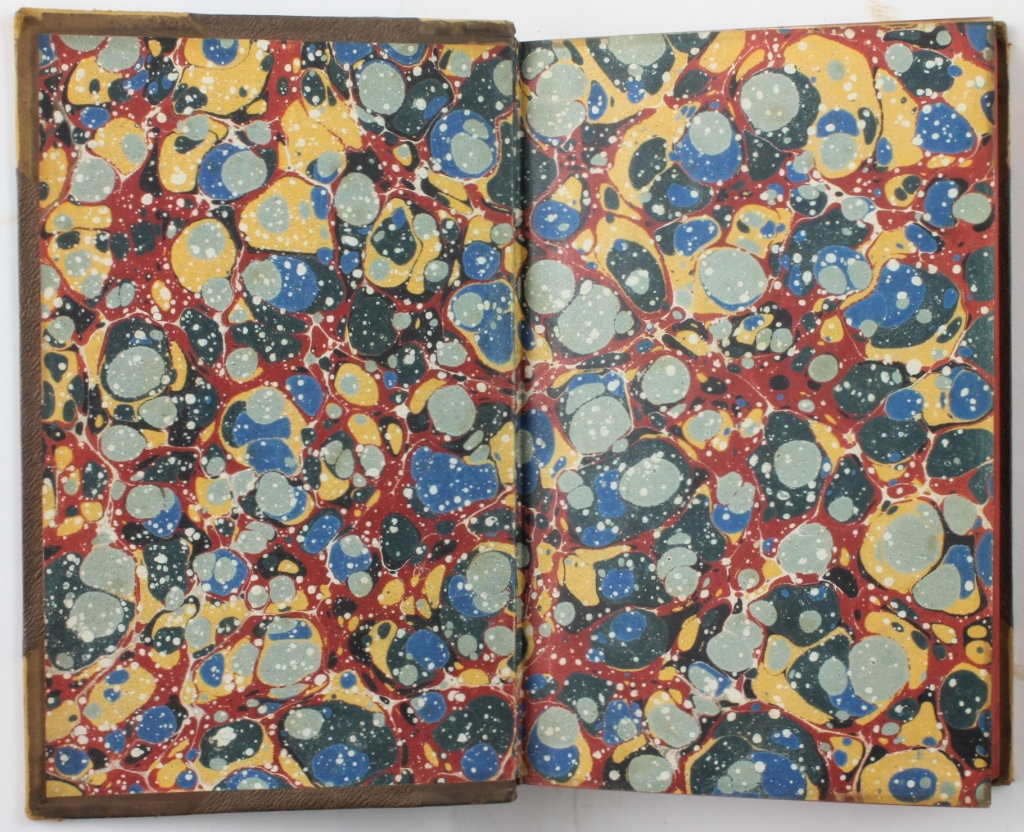

FRENCH SHELL

The French Shell pattern in this example is created, firstly by dropping blue ink, mixed with ox gall, into the size. The ox gall makes sure that the ink flows out evenly into large drops. A red ink, mixed with some oil, is then dropped on, applying medium sized drops. The red ink will drive the blue ink into veins, while the oil in the red ink will create a small white outline.

TITLE Quinti Septimii Florentis Tertulliani Opera Quae Supersunt Omnia AUTHOR Franciscus Oehler PLACE Leipzig DATE 1853

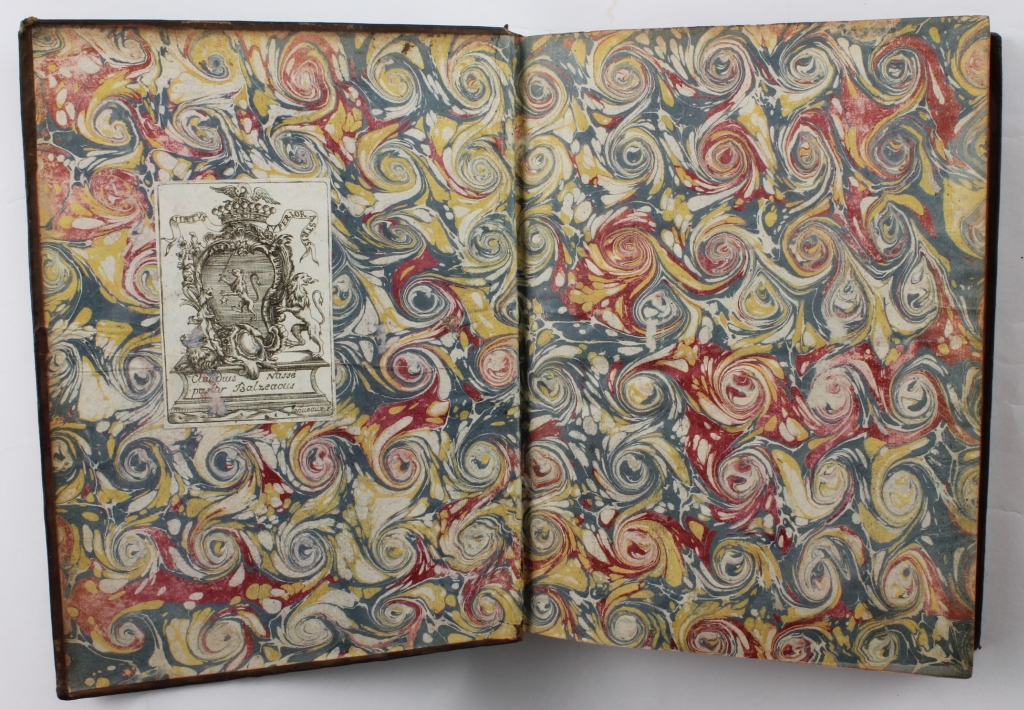

FRENCH CURL

The French Curl is created with a Turkish pattern, which is made by throwing drops of several colours onto the size. The first colours narrow with the addition of other colours and become the ‘vein’ colours for the additional inks. For the French Curl pattern, the above pattern is swirled with a stylus or wide toothed comb.

TITLE Histoire générale des auteurs sacrés et ecclisiastiques : qui contient leur vie, le catalogue, la critique, le jugement, la chronologie, l'analyse [et] le dénombrement des différentes éditions de leurs ouvrages; ce qu'ils renferment de plus intéressant sur le dogme, sur la morale [et] sur la discipline de l'église; l'histoire des conciles tant généraux que particuliers, & les actes choisis des martyrs. Volumes VIII-XXIII AUTHOR Rémy Ceillier PLACE Paris DATE 1729-1763 OBJECT ID P001182826

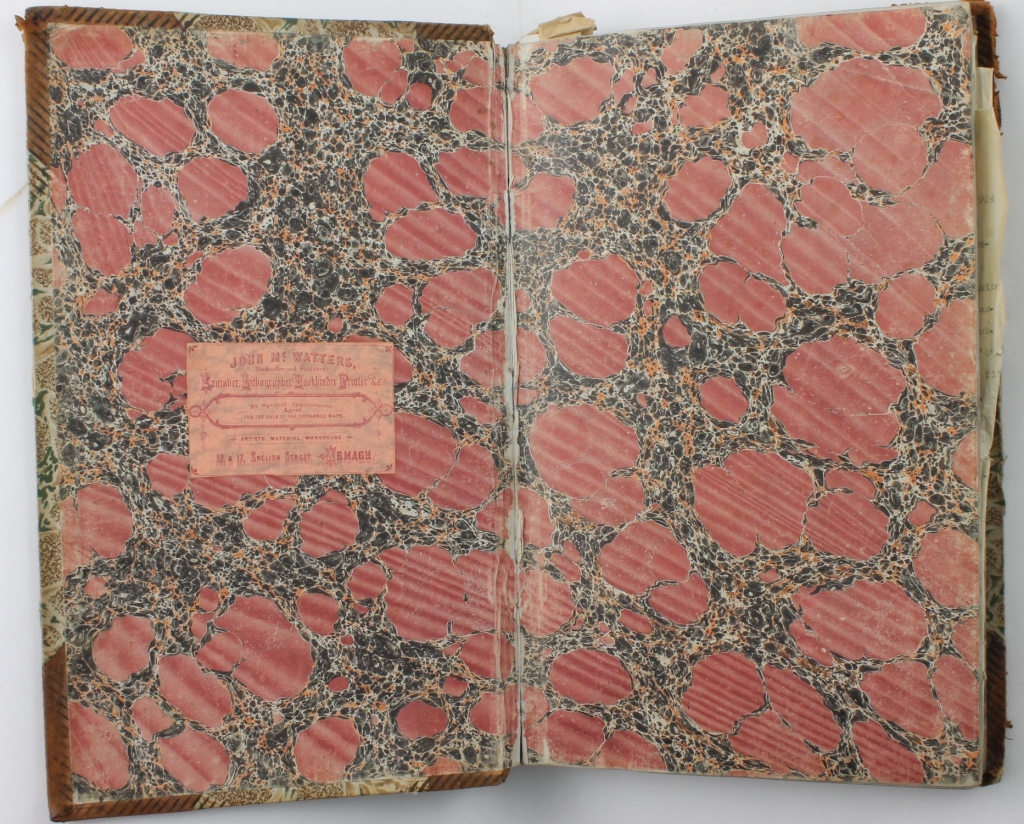

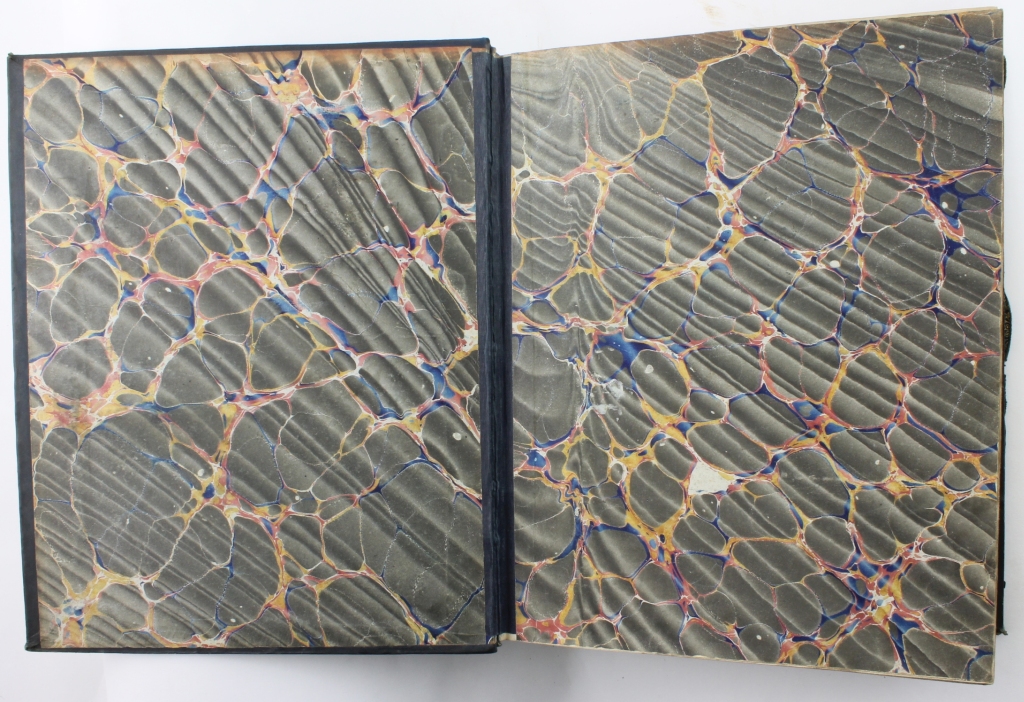

SPANISH WAVE

The Spanish Wave pattern is also created with a Turkish pattern. The pattern can be swirled or combed. When the pattern is created, the paper is gently lowered onto the size. The water is then agitated to create a rippled fabric effect.

TITLE The Holy Bible, translated from the Latin Vulgat: diligently compared with the Hebrew, Greek, and other Editions in divers languages; the Old Testament, first published by the English College at Doway, A. D. 1609; and the New Testament, first published by the English College at Rhemes, A. D. 1582. With Annotations, and an Historical and Chronological index. Revised and corrected according to the Clementin Edition of the Scriptures, and approved of by the most reverend Doctor Troy, R.C.A.D. AUTHOR John Thomas Troy PLACE Dublin DATE 1816 OBJECT ID P000986417

TITLE Keeper's Reports, submitted to the Governors and Guardians of the Public Library of Armagh, at the Annual Meeting, 1862 -1978 AUTHOR Armagh Public Library PLACE Armagh DATE 1862 -1978 OBJECT ID P002267809

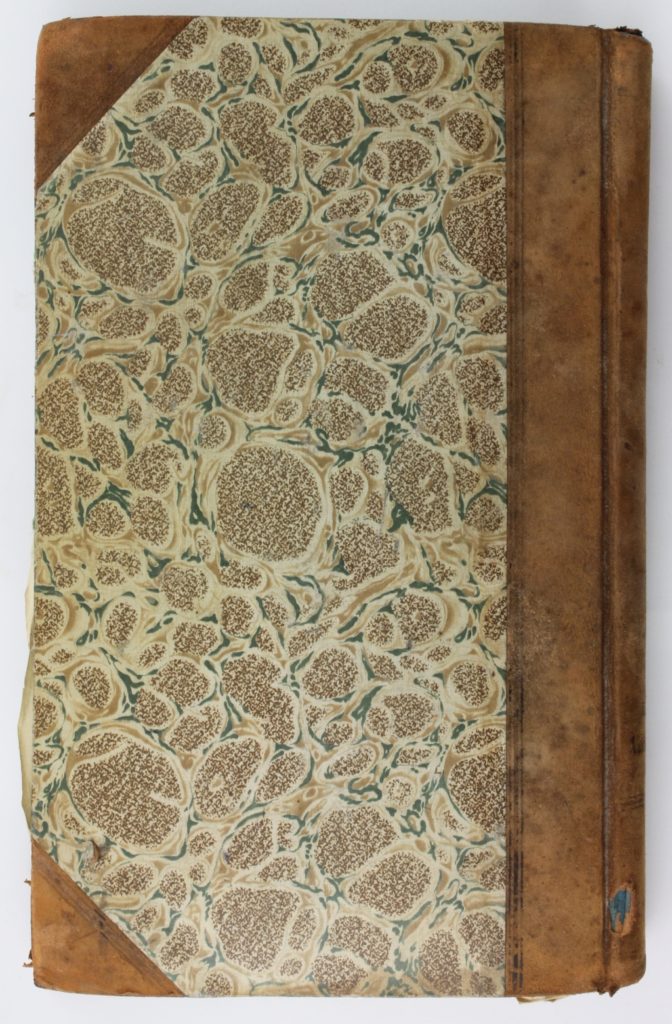

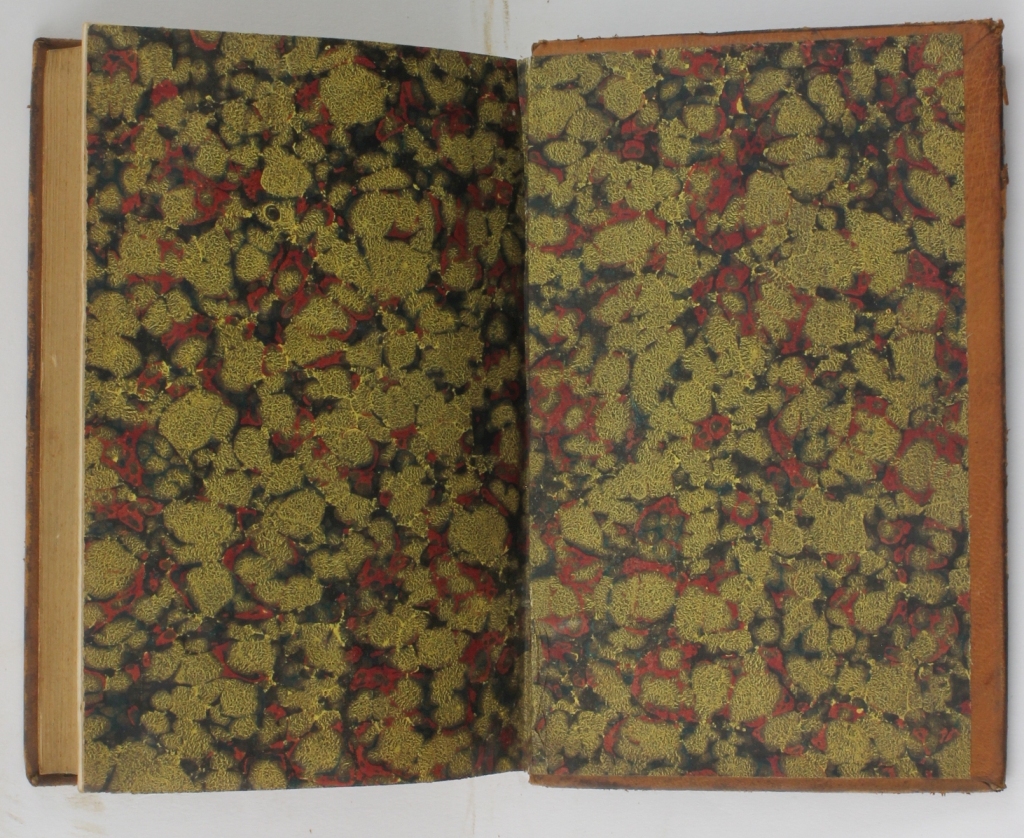

ROMANTIC

The Romantic pattern was created in Germany in the 18th century. To create the pattern an earthy ground color would form the first layer on the paper. A glazing paste with caustic elements would then be added, which causes the breaking of the ground colour.

TITLE Astuatsashunchʻ Girkʻ Hin ew Nor Ktakaranatsʻ : ebrayakan ew hunakan bnagirnerēn tʻargmanuats = The Holy Bible in Modern Western Armenian AUTHOR H.G.O. Dwight PLACE Istanbul DATE 1857 OBJECT ID P00118117x

TITLE Keeper's Reports, submitted to the Governors and Guardians of the Public Library of Armagh, at the Annual Meeting, 1862 -1978 AUTHOR Armagh Public Library PLACE Armagh DATE 1862-1978 OBJECT ID P002267809

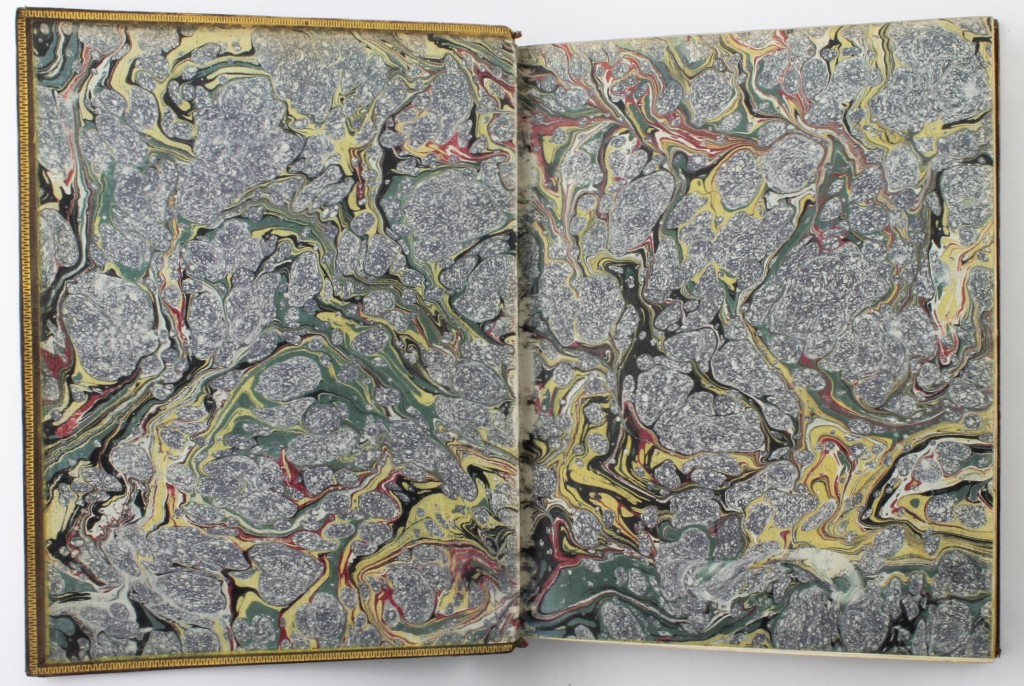

STORMONT

This pattern is started with a Turkish base. One or more colors would then be mixed with a dispersant, such as turpentine, and thrown onto the bath. These dispersant-mixed colors will appear to be covered with tiny holes.

TITLE The Works of the Right Rev. William Warburton, Lord Bishop of Gloucester AUTHOR William Warburton PLACE London DATE 1788 OBJECT ID P000999020
